What Does 30 Ton Overhead Crane Capacity Mean?

by

When purchasing or operating an overhead crane, one of the most important specifications you will encounter is its capacity. If you are considering a 30 ton overhead crane, understanding exactly what this capacity means – and what it does not mean – is critical to ensuring safe, efficient, and cost-effective lifting operations. While the number seems straightforward, the concept of crane capacity involves engineering calculations, design standards, and real-world operating conditions that must all be carefully considered.

This article explains what 30 ton overhead crane capacity means, how it is determined, and what operators and businesses need to know to use such a crane safely and effectively.

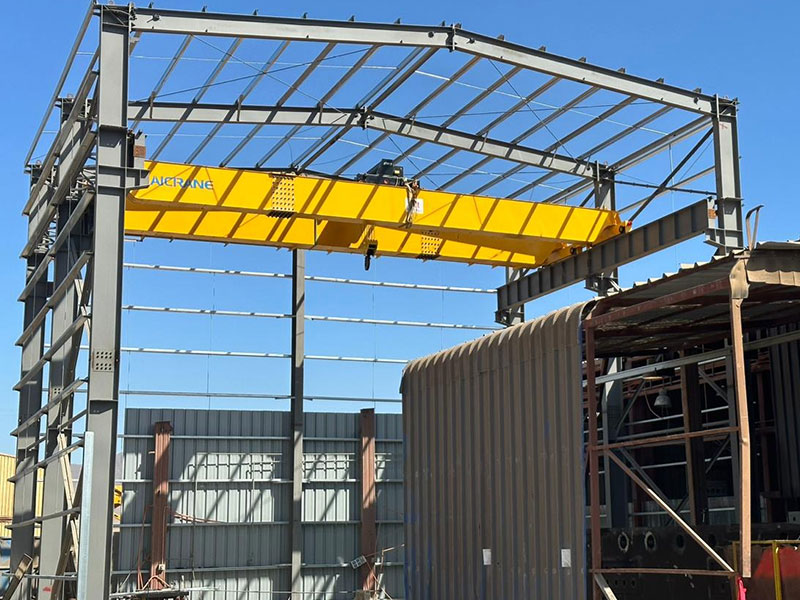

30 ton overhead crane

Understanding Crane Capacity

At its most basic, crane capacity refers to the maximum load that a crane is designed and certified to lift safely. For a 30 ton overhead crane, this means the crane has been engineered to handle up to 30 tons of weight under specified conditions.

However, this does not mean that you can always attach a 30 ton load to the hook and expect safe performance. The crane’s rated capacity is based on standardized conditions, and the actual working capacity can be influenced by many external factors such as load distribution, lifting method, and the condition of the crane itself.

How Is the 30 Ton Capacity Determined?

The rated capacity of a double girder overhead crane for sale is not arbitrary. It is calculated and verified through design standards, engineering principles, and rigorous testing. Here are the main factors that determine a crane’s rated capacity:

  1. Structural Design

    • The girders, end trucks, and supporting runway system are engineered to withstand the stresses of lifting and moving 30 tons.

    • Factors of safety are included in the design, meaning the crane can structurally handle slightly more than its rated load, but it should never be used beyond its stated limit.

  2. Hoist Mechanism

    • The hoist, including the motor, gearbox, drum, and wire rope or chain, is designed to lift and lower 30 tons safely.

    • The drum size and rope diameter are calculated based on load strength requirements.

  3. Braking Systems

    • Brakes are sized to hold and stop loads up to the rated capacity, ensuring that a 30 ton load does not overrun the system.

  4. Standards and Regulations

    • International standards such as CMAA (Crane Manufacturers Association of America), FEM (European Federation of Materials Handling), or ISO guidelines define how capacities are established and tested.

    • A crane is load tested (often to 125% of its rated capacity) before being certified for use.

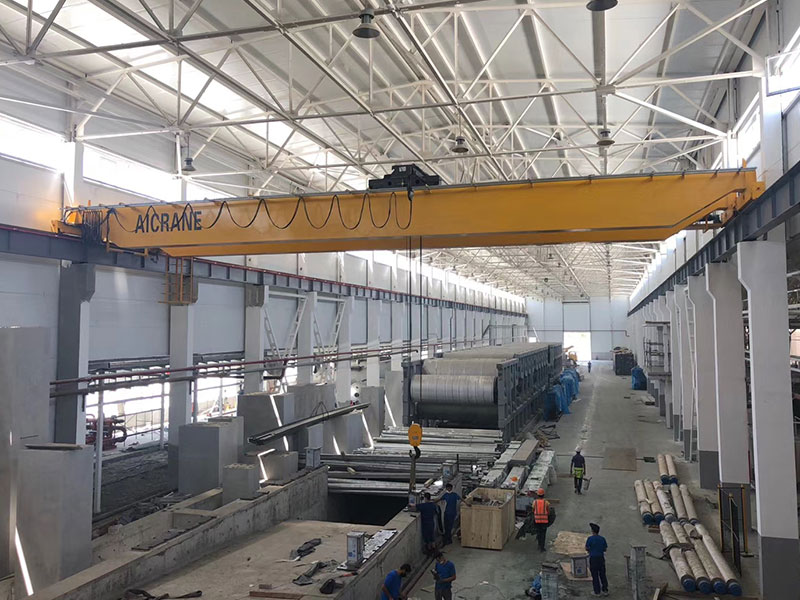

30t overhead crane

Rated Capacity vs. Actual Capacity

It is important to differentiate between rated capacity and actual working capacity.

  • Rated Capacity (30 tons): The maximum load the crane can lift under ideal conditions, as defined by the eot crane manufacturer.

  • Actual Capacity: The safe lifting limit in real-world operations, which can be less than 30 tons depending on rigging, load distribution, or environmental conditions.

For example:

  • If a lifting beam or spreader bar weighs 2 tons, then the crane can only lift a 28 ton payload.

  • If the load is off-center or not evenly distributed across the hoist, the actual safe capacity may be less than 30 tons.

What Does 30 Ton Capacity Mean for Businesses?

Owning or operating a 30 ton overhead crane offers many advantages for industries that need to handle heavy loads. Here’s what that capacity means in practical terms:

  1. Material Handling Efficiency

    • The crane can lift large machinery, steel coils, heavy concrete elements, or shipping equipment without the need for multiple smaller lifts.

    • This reduces handling time and boosts productivity.

  2. Versatility Across Applications

    • A 30 ton crane can be used in industries like steel manufacturing, shipbuilding, power plants, heavy equipment assembly, and large warehouses.

    • It provides flexibility to handle a wide range of materials and components.

  3. Reduced Risk of Overloading

    • If your typical loads fall in the 20–25 ton range, a 30 ton crane gives you extra capacity buffer, reducing the risk of overloading the system.

  4. Long-Term Investment Value

    • A higher-capacity crane ensures you are prepared for heavier lifting requirements in the future, reducing the need for frequent equipment upgrades.

Factors That Influence Safe Use of 30 Ton Cranes

Even though the crane is rated for 30 tons, safe operation depends on many factors. Here are some key considerations:

  1. Rigging Weight

    • The total lifted weight includes the load plus all rigging gear such as slings, hooks, chains, or spreader beams.

    • Operators must calculate this combined weight before each lift.

  2. Load Distribution

    • Uneven or swinging loads can reduce stability. A bridge crane for sale can safely handle 30 tons only if the load is balanced and directly under the hoist.

  3. Crane Condition

    • Worn ropes, gears, or brakes can reduce the crane’s actual lifting capability. Regular maintenance is essential.

  4. Work Duty Class

    • A 30 ton crane designed for light duty (infrequent lifts) is not the same as one built for heavy duty, continuous operations. Work duty class (A3–A8) affects durability and safe usage.

  5. Environment

    • Extreme temperatures, corrosive environments, or windy conditions in outdoor settings may require de-rating of capacity.

Common Misunderstandings About 30 Ton Crane Capacity

  • Myth 1: The crane can always lift 30 tons safely.
    Reality: Actual safe load depends on rigging, load position, and environmental conditions.

  • Myth 2: A crane’s structure can handle more than rated capacity, so slight overloads are fine.
    Reality: While cranes have safety factors in design, exceeding rated capacity risks catastrophic failure and voids warranties.

  • Myth 3: Capacity refers only to the hoist.
    Reality: Capacity reflects the entire crane system – structure, hoist, brakes, and runway.

Best Practices for Operating a 30 Ton Overhead Crane

  1. Always Follow Load Charts

    • Refer to manufacturer guidelines and load charts to understand capacity limits in different conditions.

  2. Account for Rigging

    • Deduct the weight of rigging equipment from the total capacity before lifting.

  3. Train Operators Thoroughly

    • Operators should understand rated vs actual capacity, load balance, and safe rigging practices.

  4. Regular Inspections and Maintenance

    • Routine checks ensure the crane remains capable of lifting its rated 30 tons safely.

  5. Use Load Monitoring Systems

    • Modern overhead cranes often come with load sensors and displays to help prevent overload.

Conclusion

So, what does 30 ton overhead crane capacity mean? It means the crane has been designed, tested, and certified to lift a maximum of 30 tons under ideal conditions. In practice, however, the safe lifting limit – known as the actual working capacity – can be lower depending on rigging, load distribution, and working conditions.

For businesses, this capacity translates into the ability to handle large, heavy loads efficiently across industries such as manufacturing, shipbuilding, steel production, and logistics. For operators, it requires a clear understanding of rated versus actual capacity, along with adherence to safety practices, to ensure reliable and accident-free crane operation.

In short, a 30 ton overhead crane capacity is a critical specification, but its true meaning lies in knowing how to apply it correctly in real-world lifting operations.
